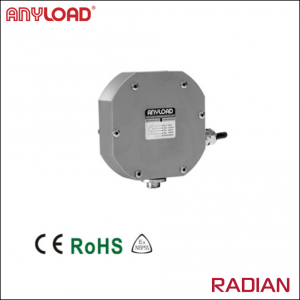

| 101AH |
|
- 분류 : 계측센서 > 로드셀
- 제조사 : ANYLOAD
- 정밀도 : 0.0166%
- 방수등급 : IP65
- 허용과부하 : 150%
|
|
|
•Material: Alloy steel
•Rated Capacities: 1kg, 2kg, 3kg, 5kg, 10kg, 20kg, 30kg
•Full Scale Output: 2mV/V ± 10%
•Safe Overload: 150%
•Breaking Overload: 300%
•IP Rating: IP65
•CE, RoHS and Ex certified
•Measurement Ukraine certified
| Rated Capacity |
1kg, 2kg, 3kg, 5kg, 10kg, 20kg, 30kg |
| Full Scale Output |
2mV/V ± 10% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.017% |
| Repeatability |
< ± 0.017% |
| Hysteresis Error |
< ± 0.017% |
| Creep in 30 minutes |
< ± 0.023% |
| Input Resistance |
400Ω ± 20Ω |
| Output Resistance |
350Ω ± 3Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Temperature Effect on Sensitivity |
< ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance |
< ± 0.0040% of Cn/k |
| Compensated Temperature Range |
-10°C to 50°C/14°F to 122°F |
| Service Temperature Range |
-30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Environmentally sealed |
| IP Rating |
IP65 | |
