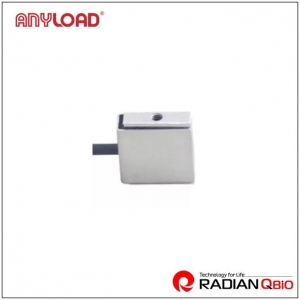

| 101RSLS Series |
|
- 분류 : 계측센서 > 로드셀
- 제조사 : ANYLOAD
|
|
|
특징
* 소재: 스테인리스 스틸
* 정격 용량: 250g, 1lb, 2lb, 5lb, 10lb, 25lb, 50lb, 100lb, 100lb
* 전체 스케일 출력: 1.0mV/V ± 20% (250g); 2.0mV/V ± 20% (1-100lb)
* 안전한 과부하: 전체 스케일의 1000 % (1-25lb); 장력 전용 전체 스케일(50-100lb)의 200%
* IP 등급: IP40
* 동전보다 작은 크기의 빔 로드셀
| Rated Capacities |
250g, 1lb, 2lb, 3lb, 10lb, 25lb, 50lb, 100lb |
| Full Scale Output |
1.0mV/V ± 20% (250g); 2.0mV/V ± 20% (1-100lb) |
| Zero Balance |
< ± 0.02mV/V |
| Non-linearity |
< ± 0.1% |
| Repeatability |
< ± 0.05% |
| Hysteresis Error |
< ± 0.1% |
| Creep in 30 minutes |
< ± 0.1% |
| Input Resistance |
350Ω ±10Ω |
| Output Resistance |
350Ω ± 5Ω |
| Recommended Excitation |
5V (10V Max) |
| Insulation Resistance |
>5 [50V DC] GΩ |
| Nominal Temperature Range |
-10°C to 50°C/-14°F to 122°F |
| Safe Overload |
1000% of full scale (1-25lb); 200% of full scale (50-100lb) for tension only |
| Seal Type |
Environmentally Sealed |
| IP Rating |
IP40 | |
