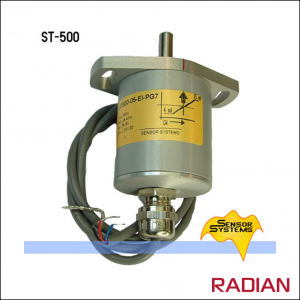

| ST-500 |
|
- 분류 : 계측센서 > 각도/경사 센서
- 제조사 : Sensor Systems
|
|
|
고성능 고정밀 타입.
높은 온도 저항 범위.
기계,전자,건축,토목 적용에 특화.
Main Characteristics
• Angle Range 0 to 75°
• Input Voltage 12 to 30 VDC
• Infinite resolution
• Operating Temperature -40° C ~ 70° C
• No wipers
• Low noise
• High life time
• Full 360 ° rotation
• Resistance to vibrations (DIN IEC68T2/6 20g)
• High sensibility and repeatability
• Magnetoresistive element
• High frequency of response
• Output 4....20 mA (0.5 4.5 Volt)
• IP 67 sealing available
Description
• Anodised Aluminium housing
• Aluminium mounting flange
• PG cable gland
• Protection with isolating polymeric
• Influence of magnetic field 0.001 %/Oersted
• Resistant in nuclear radiations
• 6 mm shaft 303 steel
• Double inox miniature bearing
Applications
• Web tension control
• Throttle position
• Dancer arm tensioning
• Quarter turn valves
• Hydraulic valve control
• Marine stabilizers
• Butterfly valves
|
