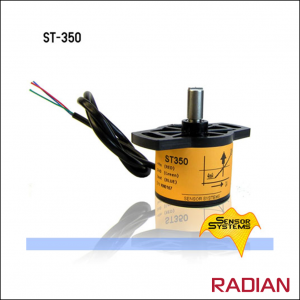

| ST-350 |
|
- 분류 : 계측센서 > 각도/경사 센서
- 제조사 : Sensor Systems
|
|
|
로타리 회전각 측정.
높은 온도 저항, 안정성 보증.
정밀 측정.
Main Characteristics
• High grade plastic case
• Angle Range: up to 360 programmable
• Input Voltage: 5±0.5 or 24..30 VDC
• Output: 0.5 – 4.5 Ratiometric (input voltage 5 V) 0-10 V (input voltage 24 V); 4-20 mA optional
• Operating Temperature: -20 ° C +80° C
• No wipers
• High life time
• Vibration resistance (DIN IEC 68T2/6 20g)
• High sensibility and repeatability
• Hall Effect Sensor
• IP54 protection (IP65 optional)
Description
• Plastic housing
• Wire exit (AWG 26 outer diameter 4,5 mm)
• Protection with isolating polymeric
• 6 mm shaft in AISI303 steel
• Double inox miniature bearing |
